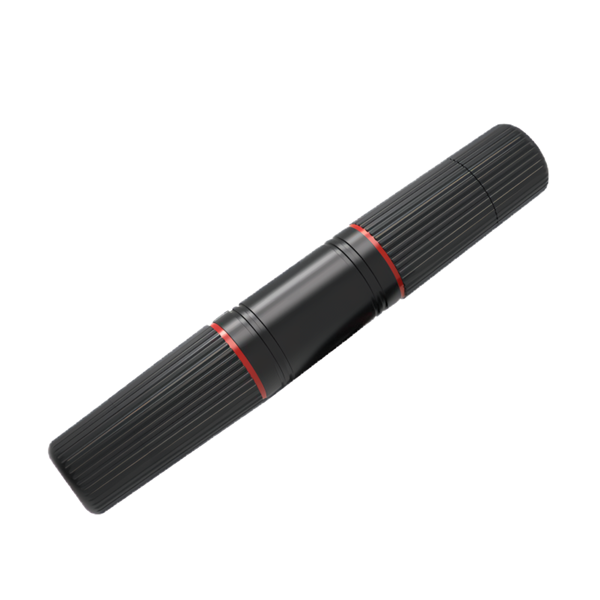

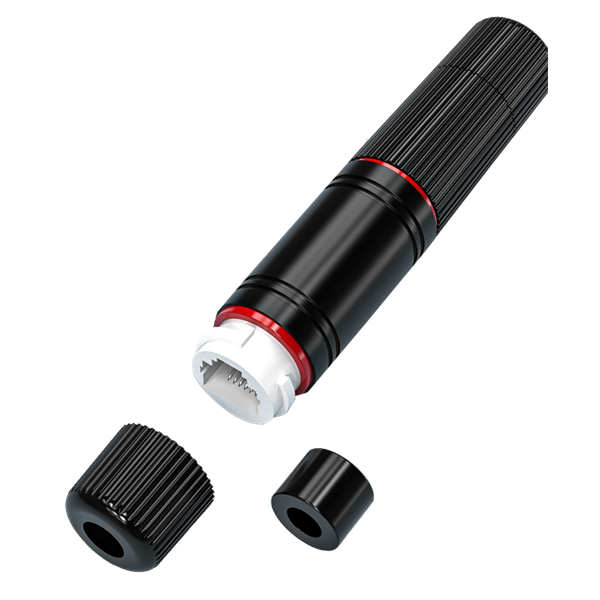

Walisec kültéri toldó – RJ45-KC6UW2 (Cat6, árnyékolatlan, IP67)

Connector Type

Category

Cat 6

Connector

2x RJ45(8P8C) Female Ports

Shielding

Unshielded

Material

Housing Material

Polycarbonate + Nylon Waterproof Joint

Contact Material

Phosphor Bronze, Stamped Pin, Thickness = 0.35mm

Contact Surface Material

Gold Plating, thickness = 0.5U (0.5μin or 0.0127 µm)

Electrical Properties

Voltage/Current Rating

125 VAC / 1.5 A

Insulation Resistance

≥ 1000 MΩ

Contact Resistance

≤ 100 mΩ at 500 VDC

Dielectric Strength

750 VAC RMS, 60Hz, 1 minute

Mechanical Properties

Durability

≥ 750 mating cycles

Wire Gauge

AWG 22-26

Environment

Operating Temperature

-40°C to 70°C

Operating Humidity

RH 10% to 90% (non-condensing)

Storage Temperature

-40°C to 80°C

Storage Humidity

RH 5% to 96% (non-condensing)

General

Dimension

O20x118 mm (Diameter x Length)

Net Weight

29 g
